10% off

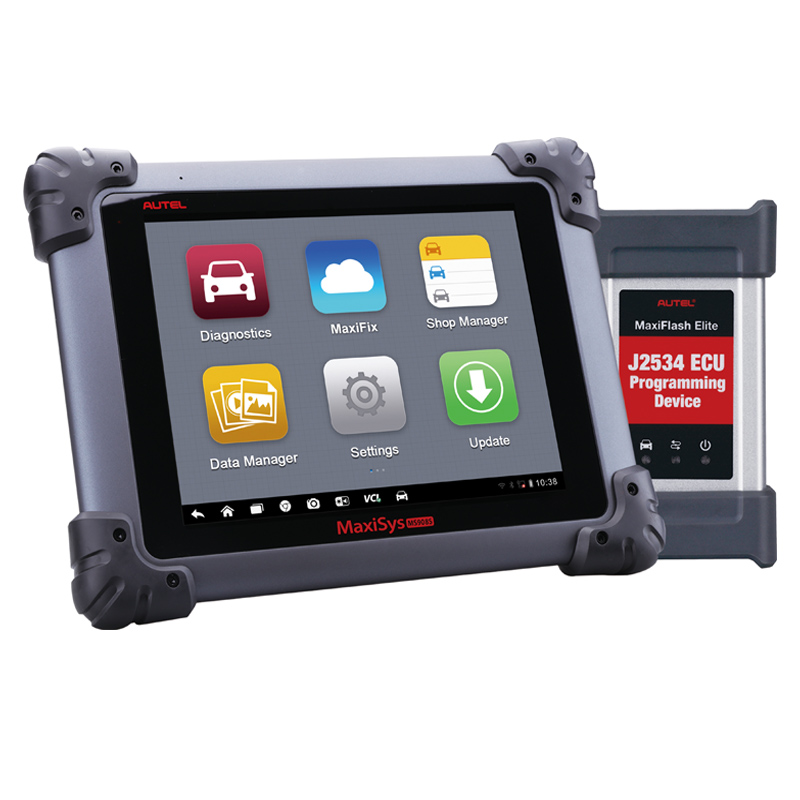

MaxiSYS MS908S Pro

In Stock. History 45 sold. Item No. SK
Buy Now: 0
24% off
Overseas Warehouse Fast Shipping & No Tax
UAE Check: Ship from UAE
SR Check: Ship from Saudi Arabia
JD Check: Ship from Jordan
Whatsapp Contact: +971501679410

Returns:
Return for refund within 30 days,buyer pays return shipping.
  Video Link:Vist Now!
Tags: MaxiSYS MS908S Pro Car Diagnostic Tool Ship from Dubai
Ship from UAE

OBD2 Bi-Directional Diagnostic Scanner And J2534 VCI One of the MaxiSys series devices, the MS908S Pro Diagnostic Platform bases on the revolutionary Android multitasking operating system, utilizes the powerful Cortex A7+A15 six-core processor, and equips with 9.7-inch LED capacitive touch screen. Supporting J2534 ECU Programming Device is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues. MS908S Pro is an ideal tool for a truly trouble-free diagnosis of a maintenance plant by quickly, efficiently and effectively diagnosing automotive faults, managing customer data, and standardizing business processes.

description:

• Extraordinarily powerful Cortex A7+A15 six-core processor

• 9.7” 2048×1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology

• Internal reliable 64GB On-board Memory for better performance

• Built-in 8-megapixel rear camera with autofocus and flashlight

• The VCI connects to the main unit wirelessly with up to 70 meters working range

• 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources

• Unique ergonomic design with rubberized outer protection and a rugged internal housing

• Open source Android Operating System for fast boot-up and multitasking

• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

• Exceptional OE-Level system coverage for all electronic systems

• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc

• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

• Built-in rechargeable lithium-polymer battery for up to 7.5 hours of continuous operation

• Equip with J2534 ECU Programming Device for replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.

specification:

1- Operating System/ Android™ 4.4.2, KitKat

2- Processor/ Samsung Exynos Six-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)

3- Memory/ 2GB RAM and 64GB On-board Memory

4- Display/ 9.7 inch LED capacitive touch screen with 2048×1536 resolution

5- Connectivity/ Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI

6- Camera (rear)/8.0 Megapixel, AF with Flashlight

7- Sensors/ Gravity Accelerometer, Ambient Light Sensor (ALS) Audio Input/Output/ Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack

8- Power and Battery/ 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C

9- Input Voltage/ 12 V (9-24 V)

10- Power Consumption/ 6.5 W

11- Operating Temp/ 0 to 50°C (32 to 122°F)

12- Storage Temp/ -20 to 60°C (-4 to 140°F)

13- Dimensions(WXHX D)/ 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)

14- Weight/ NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)

15- Protocols/ ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Accessories

Main Uint

MaxiFlash

Elite Main

Cable USB

Cable ACDC

Adapter (12V)

clipper cable

Cigarette Lighter

Light Fuse 6×30mm

2PCS Ethernet Serial Cable

USB Ethernet Adapter (OPTIONAL)

Mini USB Cable

Honda-3

Nissan-14

MitsubishiHyundai-12+16

Kia-20

Benz-38

BMW-20

VWAUDI-2+2

Fiat-3 *available In Europe Only

PSA-2 *available In Europe Only

GMDaewoo-12

Benz-14 *available In Europe Only

Chrysier-16 *available in America only

BMW Ethernet Cable (for F-Series Coding and Programming) (OPTIONAL)

User Manual Quick Reference Guide Packing List Carrying Case 634×170×404mm Soft Cloth
